The PAC15B Trigger/Trigger Board
The PAC15B intelligent SCR trigger is easy to operate and fully functional.
It features a three-color LED light, making the working status clear at a glance, and can be widely used in various industrial fields for resistive loads.
Key features: It can be flexibly configured for phase-shift voltage regulation, zero-crossing power regulation, or cycle power regulation.
| 1 |
Current Capacity |
25A,50A，60A，80A，90A，115A，140A，160A,190A,250A,320A,400A AC |
| 2 |
Control Board Power Suppl yand Power Consumption |
Power Supply：220V AC 380V AC ±10% 50HZ, requires same phase as load power supply Power Consumption： 5W maximum |
| 3 |
Control InputControl Input |
4～20mA or 0-10V DC input, receiving impedance 100Ω |
| 4 |
LED Status Indicator |
Input Indicator LED (1)： Red Three-color Status LED (1)： Green, Running (output on) Yellow flashing, Stopped (no output) Red-green flashing, Heat sink overtemperature alarm (no output) |
| 5 |
Control Mode |
Phase Control： Continuous voltage regulation Power Control： Resistive cycle zero-crossing power regulation |
| 6 |
Output Resolution |
Phase Control： 0.2°, Power Control: 20ms |
| 7 |
Phase Shift Range |
0～175°, Star load (center point grounded) 0～150°, Delta load or Star load (center point ungrounded) |
| 8 | Drive Output |
With single silicon anti-parallel thyristor module Variable width pulse：8°~120° Voltage： 5V Current： 100mA maximum |
| 9 |
Manual Mode |
External 10KΩ potentiometer adjustment |
| 10 |
Soft Start Time |
During phase control, adjusted by P3 potentiometer. Adjustment range: 0.2~120 seconds |
| 11 |
Soft Shutdown Time |
During phase control, fixed at 10 seconds |
| 12 |
Voltage Limit |
Adjusted by onboard P1 potentiometer or external 10KΩ potentiometer. Adjustment range: 0~100% |
| 13 |
Heat Sink Overtemperature Protection |
80℃ temperature switch, normally closed contact Action time: < 20ms |
| 14 |
Alarm Output |
Activated when heat sink overtemperature Specification: 1 normally open contact, 1A 250V AC resistive Output terminals: CN2-1, CN2-2 |
| 15 | Emergency Stop |
When the alarm is activated, the control output will stop urgently Action time: < 20ms Disable: After the alarm is dismissed, enter the standby state or power on again |
| 16 |
Start/Stop Switch (External Switch) |
R1 terminal: CN1-3 terminal, RS terminal: CN1-7 terminal. R1 - RS terminal: Voltage-free contact input. Short-circuit voltage regulation (factory setting): slow shutdown, open circuit: slow start |
| 17 |
Power regulation/voltage regulation switching (SW1-1 DIP Switch) |
SW1-1=ON, Voltage Regulation (Factory Setting) SW1-1=OFF, frequency power regulation |
|
PAC15B Single-Phase SCR Trigger Board/Trigger
|
| PAC15B with plastic casing |
|
PAC15B without plastic casing |

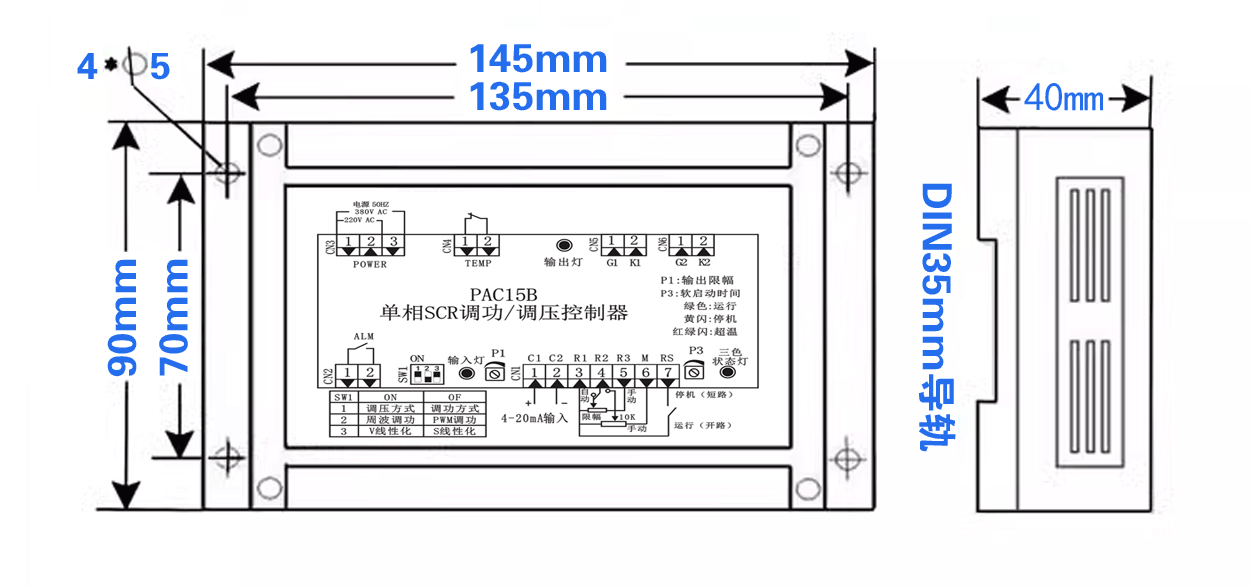

Installation method: 4-hole mounting or DIN 35mm rail mounting
